Aluminum Coil | Temper | Thickness (mm) | Width (mm) | Length (mm) |
5182 | H14, H16, H18, H19, H48 | 0.27-0.457 | 515-1524 | coils |
Chemical Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other total | Al |
Min. | - | - | - | 0.2 | 4.0 | - | - | - | - | Rem. |
Max. | 0.2 | 0.35 | 0.15 | 0.1 | 5.0 | 0.1 | 0.14 | 0.1 | 0.15 |

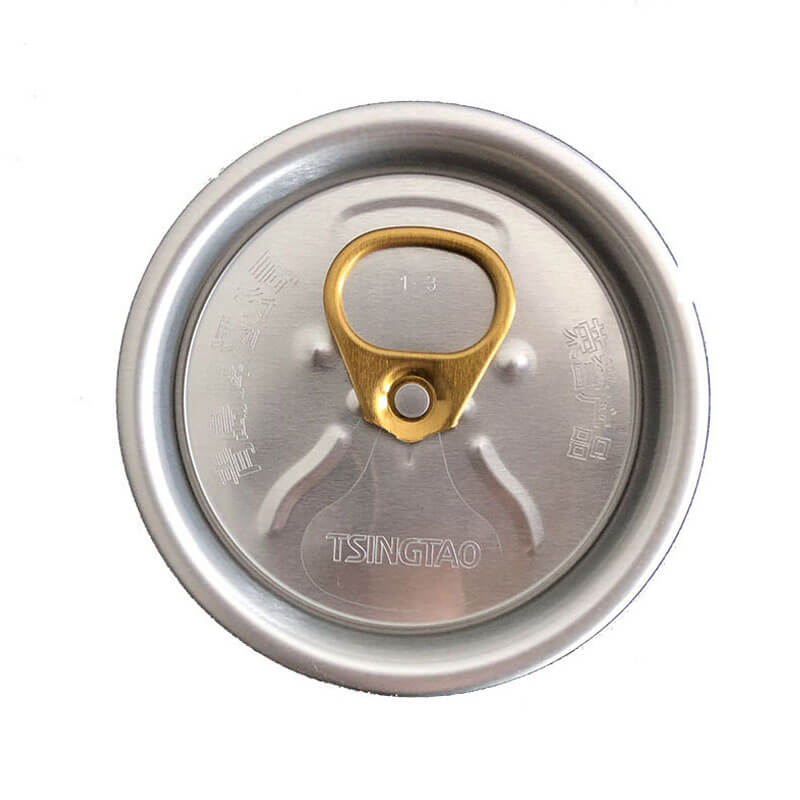

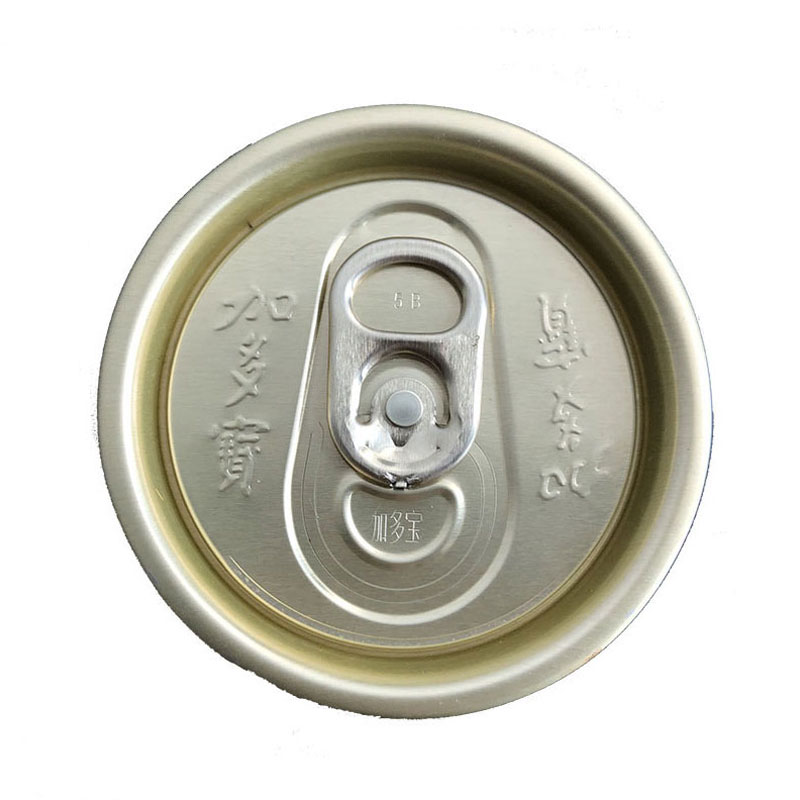

Aluminum lid size: 113, 200, 202, 206,bottom size 200 and 209.
Product Specification | |||
Alloy system | Al-Mg | Aluminum series | 5052/5182 |
Alu. Thickness | 0.240±0.005mm | Coating | Epoxy |
Outside Dia. | 54.40±0.05mm | Compound cut edge | 0.3~1.2mm |
Countersink | 5.40±0.10mm | Pop Force | 8-12N |
Curl Height | 2.05±0.10mm | Pull Force | 16-30N |
Curl Opening | ≥2.50mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Compound Weight | 30±10 | Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Ends per 2 Inches | 26±2 (Pcs) | Leakage | No leakage in Helium test |
Product Specification | |||
Alloy system | Al-Mg | Aluminum series | 5052/5182 |
Alu. Thickness | 0.240±0.005mm | Coating | Epoxy |
Outside Dia. | 59.10±0.15mm | Compound cut edge | 0.3~1.2mm |
Countersink | 6.12±0.10mm | Pop Force | 8-12N |
Curl Height | 2.06±0.10mm | Pull Force | 16-30N |
Curl Opening | ≥3.07mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Compound Weight | 40±10 | Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Ends per 2 Inches | 26±2 (Pcs) | Leakage | No leakage in Helium test |
Product Specification | |||
Alloy system | Al-Mg | Aluminum series | 5052/5182 |
Alu. Thickness | 0.22±0.005mm | Coating | Epoxy |
Outside Dia. | 59.440±0.05mm | Compound cut edge | 0.3~1.2mm |
Countersink | 6.80±0.10mm | Pop Force | 9-13N |
Curl Height | 2.03±0.05mm | Pull Force | 20-40N |
Curl Opening | ≥2.72mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Compound Weight | 30±10 | Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Ends per 2 Inches | 26±2 (Pcs) | Leakage | No leakage in Helium test |
Product Specification | |||
Alloy system | Al-Mg | Aluminum series | 5052/5182 |
Alu. Thickness | 0.24±0.005mm | Coating | Epoxy |
Outside Dia. | 64.77±0.15mm | Compound cut edge | 0.3~1.2mm |
Countersink | 6.35±0.10mm | Pop Force | 8-12N |
Curl Height | 2.00±0.05mm | Pull Force | 16-30N |
Curl Opening | ≥2.72mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Compound Weight | 40±10 | Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Ends per 2 Inches | 26±2 (Pcs) | Leakage | No leakage in Helium test |
Product Specification | |||
Alloy system | Al-Mg/Al-Mn | Aluminum series | 5052/3104 |
Alu. Thickness | 0.24±0.005mm | Coating | Epoxy |
Outside Dia. | 59.10±0.15mm | Compound cut edge | 0.3~1.2mm |
Countersink | 3.95±0.10mm | Compound Weight | 40±10 |
Curl Height | 2.06±0.10mm | Ends per 2 Inches | 26±2 (Pcs) |
Curl Opening | ≥3.07mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Product Specification | |||
Alloy system | Al-Mg/Al-Mn | Aluminum series | 5052/3104 |
Alu. Thickness | 0.22±0.005mm | Coating | Epoxy |
Outside Dia. | 71.80±0.15mm | Compound cut edge | 0.3~1.2mm |
Countersink | 3.53±0.10mm | Compound Weight | 40±10 |
Curl Height | 2.00±0.10mm | Ends per 2 Inches | 26±2 (Pcs) |
Curl Opening | ≥3.07mm | Compressive Strength | No-deformation 1min 180kpa |
Compound | WBC488MHM-56 | Anti-Acid and Anti-Sulfur | Without Loss of Gloss, Whitening, Falling off, Blushing |
Boiled Test | Without Loss of Gloss, Whitening, Falling off, Blushing |
Export standard, two packaging ways:
1) Plastic film+corrugated paper+non-fumigation wooden pallet+plastic belt.
2) Plastic film+non-fumigation plywood crate+plastic belt.
3) Special packaging requirement is available.
Generally the weight is around 1000kgs per package, big roll is around 2500kgs, small rolls can be 100kgs, 200kgs, as your request.
Loading port is Qingdao or Tianjin, other port is also available.
